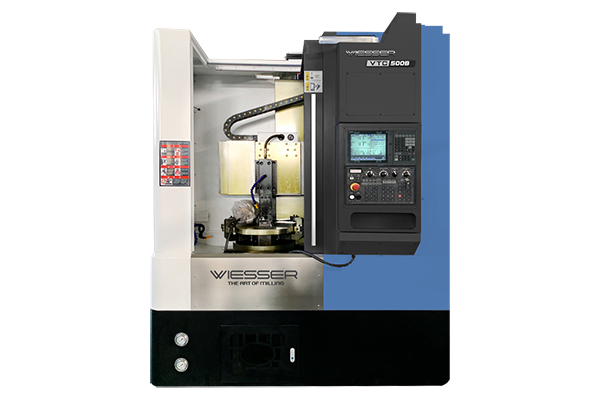

Wiesser VTC500B / 12 inch CNC Vertical Lathe

Wiesser VTC500B / 12 inch

Standard Machine Features

Fanuc 0i-TF Plus Control Unit

Strong and Wide Body Structure

Faster and more rigid movements with Linear Roller Guides

12 inch 3 Jaw Hydraulic Chuck

10 Station Horizontal Servo Turret

Pallet Type Chip Conveyor

Central Lubrication System

Foot Pedal for Chuck Clamp-Unclamp

Fully enclosed case

3-color warning lamp

Interior lighting lamp

Machine mounting foot set

Tool Bag and Kits

CE Equipment

Transformer

User and Maintenance Manuals

Capacity Information

Max. swing over bed: Ø500 (mm)

Max. turning diameter: Ø400 (mm)

Spindle nose: A2-8

Spindle bearing diameter: Ø120 (mm)

Max. spindle speed: 50 ~ 1.250 (rpm)

Spindle motor power: 11/15 (kW)

Spindle motor torque: 140 / 350 (Nm)

Chuck diameter: 12 (inch)

Turret type: Horizontal Servo Turret

Number of turret stations: 10 station

Square tool dimensions: 25x25 (mm)

Boring bar holder diameter: Ø40 (mm)

X axis travel: -50 ~ 275 (mm)

Z axis travel: 500 (mm)

Distance Between Turret and Chuck: 0~500 (mm)

Guide Type / Dimensions (X*Z): Linear Roller Guide / 45*45 (mm)

Ballscrew Diameter (X*Z): Ø40*40 (mm)

X*Z axis rapid feedrate: 15*15 (m/min.)

Cutting feedrate: 5 (m/min.)

X axis motor power / Torque: 1,6 (kW) / 10 (Nm)

Z axis motor power / Torque: 2,4 (kW) / 15 (Nm)

Machine dimensions (WxDxH): 1.800x1.850x2.700 (mm)

Approximate Machine weight: 4.500 (kg)
