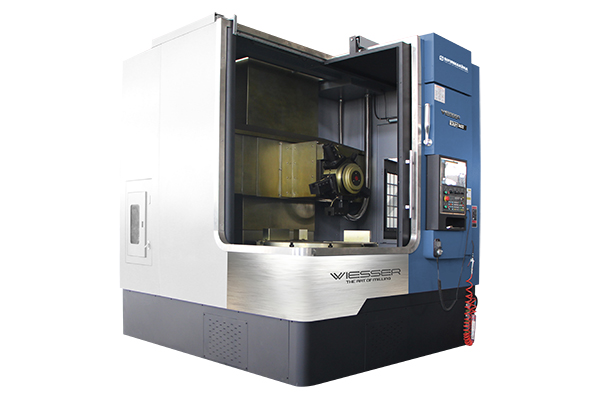

Wiesser VTC1400 / 49 inch

Capacity Information

Max. swing over bed: Ø1.400 (mm)

Max. turning diameter: Ø1.250 (mm)

Spindle nose: A2-11

Spindle bearing diameter: Ø180 (mm)

Max. spindle speed: 20 ~ 400 (rpm)

Spindle and motor transmission type: Gearbox (Double Speed)

Spindle motor power: 22 / 30 (kW)

Spindle motor torque: 210 (Nm)

Chuck diameter: 1.250 (mm)

Turret type: Servo Turret

Number of turret stations: 4 station Vertical Servo Turret

Square tool dimensions: 32x32 (mm)

Boring bar holder diameter: Ø50 (mm)

X axis travel: -50 ~ 750 (mm)

Z axis travel: 800 (mm)

Distance Between Turret and Chuck: 150~950 (mm)

Guide Type / Dimensions (X*Z): Linear Roller Guide / 65*55 (mm)

Ballscrew Diameter (X*Z): Ø50*50 (mm)

X*Z axis rapid feedrate: 15*12 (m/min.)

Cutting feedrate: 5 (m/min.)

X axis motor power / Torque: 3,5 (kW) / 22 (Nm)

Z axis motor power / Torque: 4,7 (kW) / 30 (Nm)

Machine dimensions (WxDxH): 2.800x2.950x3.250 (mm)

Approximate Machine weight: 13.800 (kg)
