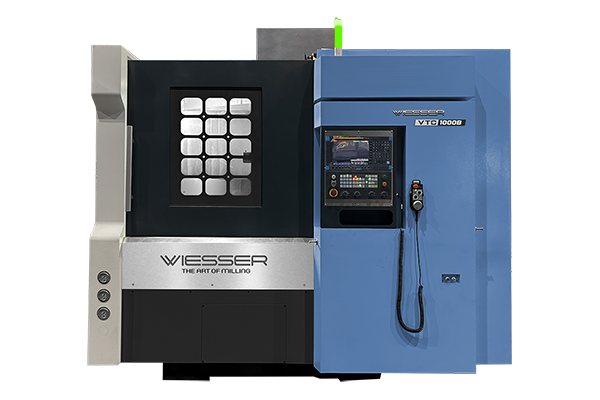

Wiesser VTC1000B / 32 inch CNC Vertical Lathe

Wiesser VTC1000B / 32 inch

Standard Machine Features

Fanuc 0i-TF Plus Control Unit

Strong and Wide Body Structure

Faster and more rigid movements with Linear Roller Guides

32 inch 3 Jaw Hydraulic Chuck

8-station Horizontal Servo Turret (Option: 12-station)

Pallet Type Chip Conveyor

Central Lubrication System

Foot Pedal for Chuck Clamp-Unclamp

Fully enclosed case

3-color warning lamp

Interior lighting lamp

Machine mounting foot set

Tool Bag and Kits

CE Equipment

Transformer

User and Maintenance Manuals

Capacity Information

Max. swing over bed: Ø1.000 (mm)

Max. turning diameter: Ø900 (mm)

Spindle nose: A2-11

Spindle bearing diameter: Ø160 (mm)

Max. spindle speed: 30 ~ 800 (rpm)

Spindle motor power: 37/47 (kW)

Spindle motor torque: 471 (Nm)

Chuck diameter: 32 (inch)

Turret type: Servo Turret

Number of turret stations: 8-station Horizontal Servo Turret (Option: 12-station)

Square tool dimensions: 32x32 (mm)

Boring bar holder diameter: Ø50 (mm)

X axis travel: -50 ~ 475 (mm)

Z axis travel: 850 (mm)

Distance Between Turret and Chuck: 0~850 (mm)

Guide Type / Dimensions (X*Z): Linear Roller Guide / 55*55 (mm)

Ballscrew Diameter (X*Z): Ø50*50 (mm)

X*Z axis rapid feedrate: 15*12 (m/min.)

Cutting feedrate: 5 (m/min.)

X axis motor power / Torque: 3,5 (kW) / 22 (Nm)

Z axis motor power / Torque: 3,5 (kW) / 22 (Nm)

Machine dimensions (WxDxH): 2.500x2.600x3.400 (mm)

Approximate Machine weight: 11.800 (kg)
