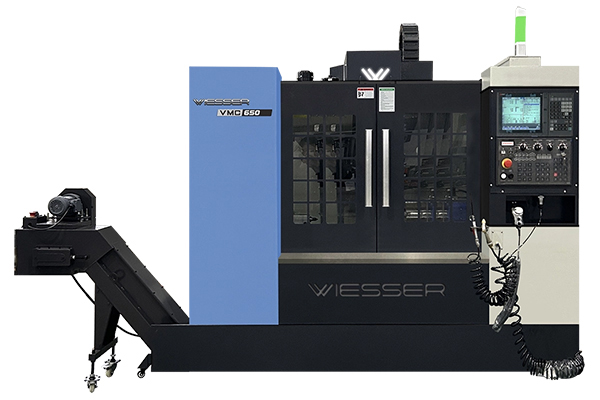

Wiesser VMC650

Capacity Information

Table dimensions : 900 x 400 (mm)

T Channel dimensions : 18 x 3 x 115 (mm)

Table loading capacity : 400 (kg)

X Axis Travel : 650 (mm)

Y Axis Travel : 450 (mm)

Z Axis Travel : 500 (mm)

Distance between spindle face and table : 100 ~ 600 (mm)

Distance between spindle and column : 500 (mm)

Spindle motor power : 7,5 (kW)

Spindle taper : BBT-40

Max. spindle speed : 12.000 (rpm)

Spindle - Motor transmission type : Direct Motor

Automatic magazine type : Arm Type

Number of magazine stations : 16 (pcs)

Max. tool diameter Standard / Side pots empty: 78 / 120 (mm)

Max. tool length : 300 (mm)

Max. tool weight : 7(kg)

Tool change time (T-T): 2 (sec.)

Axis Motor Power X*Y*Z : 2*2*3 (kW)

X Axis guideway type : Linear Roller Guide (35mm)

Y Axis guideway type : Linear Roller Guide (35mm)

Z Axis guideway type : Linear Roller Guide (35mm)

Ball screw diameter X*Y*Z / Pitch : 32*32*32 (mm) / 12 (mm)

Rapid feed X*Y*Z : 36*36*36 (m/min)

Cutting feed X*Y*Z : 15 (m/min)

Positioning accuracy : ±0.008 (mm) / 300 (mm)

Repetition accuracy : ±0.005 (mm)

Machine dimensions (WxDxH): 3.600x1.900x2.500 (mm)

Approximate Machine Weight: 4.000 (kg) (Varies according to options)
