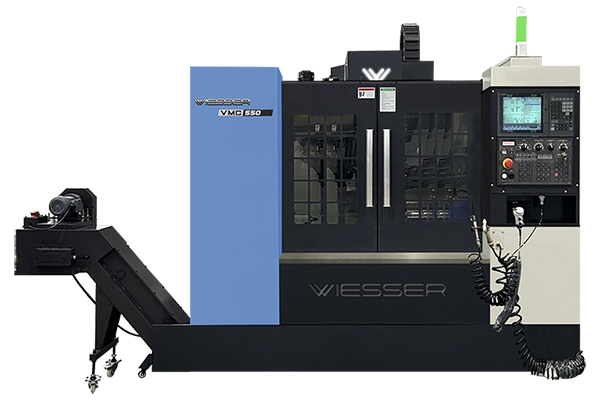

Wiesser VMC550

Capacity Information

Table dimensions : 800 x 260 (mm)

T Channel dimensions : 14 x 3 x 78 (mm)

Table loading capacity : 300 (kg)

X Axis Travel : 500 (mm)

Y Axis Travel : 350 (mm)

Z Axis Travel : 450 (mm)

Distance between spindle face and table : 120 ~ 570 (mm)

Distance between spindle and column : 350 (mm)

Spindle motor power : 7,5 (kW)

Spindle taper : BBT-40

Max. spindle speed : 12.000 (rpm)

Spindle - Motor transmission type : Direct Motor

Automatic magazine type : Umbrella Type

Number of magazine stations : 12 (pcs)

Max. tool diameter Standard / Side pots empty: 80 / 120 (mm)

Max. tool length : 300 (mm)

Max. tool weight : 6(kg)

Axis Motor Power X*Y*Z : 2*2*2 (kW)

X Axis guideway type : Linear Guide (30mm)

Y Axis guideway type : Linear Guide (30mm)

Z Axis guideway type : Linear Guide (35mm)

Ball screw diameter X*Y*Z / Pitch : 32*32*32 (mm) / 12 (mm)

Rapid feed X*Y*Z : 36*36*36 (m/min)

Cutting feed X*Y*Z : 15 (m/min)

Positioning accuracy : ±0.008 (mm) / 300 (mm)

Repetition accuracy : ±0.005 (mm)

Machine dimensions (WxDxH): 3.400x1.600x2.300 (mm)

Approximate Machine Weight: 2,100 (kg) (Varies according to options)
