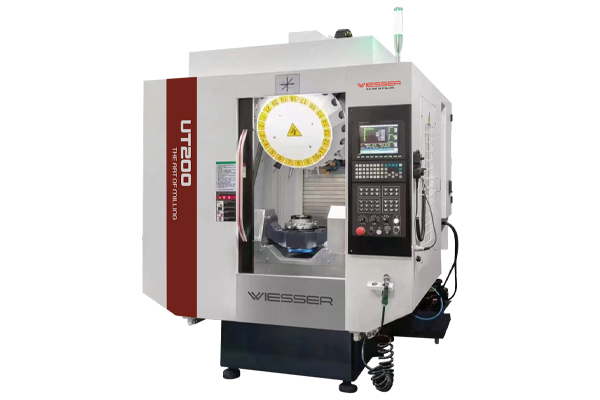

Wiesser UT200

Capacity Information

Machine Table dimensions: Ø260 (mm)

Table loading capacity: 30 (kg)

X/Y/Z axis travel : 600 / 400 / 320 (mm)

Distance between spindle nose and Table:90 ~ 410 (mm)

Distance from spindle center to column : 420 (mm)

A axis rotation range: ±110°

C axis rotation range: 360°

Max. processing height: 260 (mm)

Max. machining diameter: Ø400 (mm)

A/C axes rotation speed: 200/300 (rpm)

Spindle motor power : 3,7 / 5,5 (kW)

Spindle taper : BT30

Maximum spindle speed: 20.000 (rpm)

Spindle - Motor transmission type: Direct Motor

ATC type : Servo Magazin

Number of magazine stations: 21 (pcs)

Maximum tool diameter: 60 / 80 (mm)

Maximum tool length: 200 (mm)

Maximum tool weight: 3 (kg)

Tool change time: 1,8 (sec)

Rapid feed X*Y*Z: 48*48*48 (m/min)

Cutting feed X*Y*Z: 12 (m/min)

Machine Outer Case Dimensions W*D*H: 3.200 * 2.100 * 2.700 (mm)

Approximate Machine weight: 3.400 (kg)
