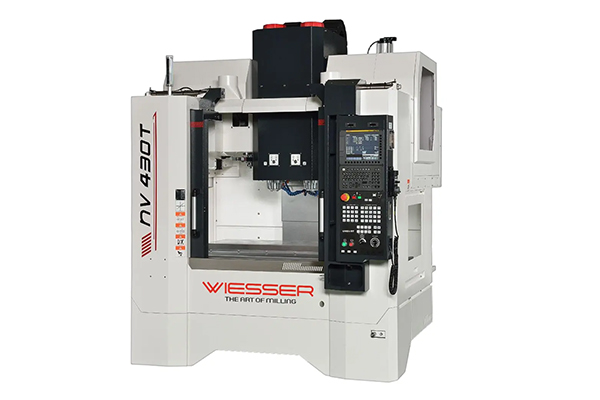

Wiesser NV430T Double Spindle CNC Machining Center

Wiesser NV430T

Standard Machine Features

High Speed Double Spindle CNC Vertical Machining Center

36 m/min. Idle Movement Speeds in All Axis

12 m/min. in All Axis Cutting Progress

Direct Motor Spindles

2 Pieces 24 Station Arm Type ATC

2 Pieces Big Plus BBT-40 Royal Brand Spindle

Strong and wide body structure

Rigidity that does not deteriorate for a long time with scraping at 17 different points in the Cast Body

Super Precision C1 Class Screw Spindles in all axes

Extra supported Durable Outer Case

Cooling water system and Boron oil gun

Pressurized bottom chip washing system (Wash Down)

Rigit Tapping (Rigid Tapping)

Spiral type chip conveyor, Fully closed case

Warning lamp showing machine operating status

Interior Lighting lamp, Machine mounting foot set

Transformer, Full CE and Tool Bag, Programming and Maintenance Book Set

Capacity Information

Machine table dimensions: 1200 x 410 (mm)

T Channels: 14 (mm) x 125 (mm) x 3

Table loading capacity: 500 (kg)

X Axis Movement Amount: 480 (mm)

Y Axis Movement Amount: 435 (mm)

Z Axis Movement Amount: 450 (mm)

Axis Guides X*Y*Z: Linear Roller Guide 35*45*45 (mm)

Axis Motor Powers X*Y*Z: 2.7 * 2.7 * 4 (kW)

Spindle to table distance: 200-650 (mm)

Spindle taper: Big Plus BBT-40

Max. Spindle motor power: 15 (kW) / S3-%15

Max. Spindle speed: 12,000 (rpm) / Direct Motor

Number of magazine stations: 2 x 24 pieces (Arm Type ATC)

Max. tool diameter: 75 (mm)

Max. tool length: 150 (mm)

Max. tool weight: 6 (kg)

Tool change time (T/T): 2.2 (sec)

Tool change time (C/C): 3.5 (sec)

Rapid feed X*Y*Z: 36*36*36 (m/min)

Cutting feed X*Y*Z: 20 (m/min)

Machine External Dimensions W*D*H: 1,860 * 2,560 * 2,770 (mm)

Approx. Machine weight: 4,200 (kg)
