Wiesser MVX500 5AX

Home Products Wiesser MVX500 5AX

Wiesser MVX500 5AX

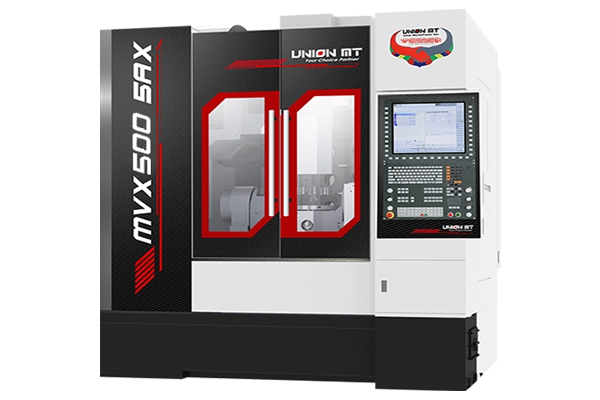

5 Axis CNC Machining Center (with Heidenhain TNC640 Control)

Standard Machine Features

Kinematic Zeroing Sphere and Software

Direct Motor Spindle

Japanese design strong, wide and rigid body structure

Rigidity that does not deteriorate for a long time with scraping at 17 different points in the Cast Body

Grease-lubricated Wide, Double-Row Roller (Bobbin) Linear Guides

Grease lubricated C2 class 45mm diameter Ball Screws on all axes

Durable outer case with 3.2 mm thickness and extra support

Better surface quality with High Speed and High precision features

Rigid Tapping

Screw type chip conveyor

30 Station arm type ATC

Spindle Cooling System

Electrical cabinet cooling system

Fully enclosed case

Portable hand wheel

Tool cooling system with compressed air

Tool cooling system with boron oil

Oil and Air Gun

Colored warning lamp indicating machine operating status

Led Interior Lighting lamp

Machine mounting feet set, Tool Bag and Kits

CE Equipment

Transformer

Operator and Maintenance Guides

Control Unit:

Heidenhain TCN640 Control

15 inch TFT Color Screen

Heidenhain Portable Handwheel

Wiesser MVX500 5AX

Capacity Information

Axis Travel X/Y/Z: 650/610/500 (mm)

Distance Between Spindle Face and Table: 30~540 (mm)

Tilting Table (A Axis) Max. Rotation Speed: 16.6 (rpm)

Tilting Table (A Axis) Angle: +30° ~ -120° (Heidenhain RCN Rotary Encoder)

Rotary Table (C Axis) Diameter: Ø 500 (mm)

Rotary Table (C Axis) Rotation Angle: 360°

Rotary Table (C Axis) Speed: 11.1 (rpm)

Max. Workpiece Diameter/Height: Ø600 x 260 (mm)

Max. Workpiece Weight: 300 (kg) Vertical / 250 (kg) Horizontal

Maximum Spindle Speed: 12,000 (rpm)

Spindle Power: 27.7 (kW) for Heidenhain control

Spindle Torque: 108.6 Nm (S3 15%)

Spindle Taper: BBT40

Ballscrew Diameter / Quality: Ø45mm / C2 Class

Axis Guideway Type X/Y/Z: Linear Roller Way

Axis Motor Powers X/Y/Z/A/C: 5.7/5.7/5.7/6.0/2.64 (kW)

Guide Widths X/Y/Z: 35/45/45 mm

Number of Blocks on Guides X/Y/Z: 6/4/6 blocks

Rapid feedrates X/Y/Z: 24 (m/min)

Cutting Feedrates X/Y/Z: (20 m/min)

ATC Type: Arm Type ATC

Tool Holder Taper Type: BBT40

ATC Tool Capacity: 30

Maximum Tool Diameter: Ø75 / Ø125 (mm) When side pots are empty

Maximum Tool Length: 300 (mm)

Maximum Tool Weight: 8 (kg)

Approximate Machine Weight: 9,000 Kg
