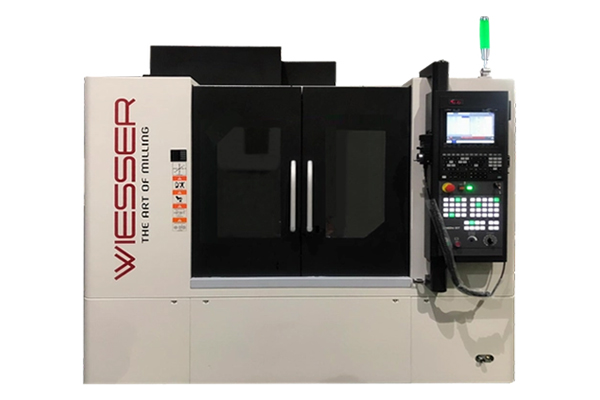

Wiesser MV850P

Home Products Wiesser MV850P

Wiesser MV850P

CNC Vertical Machining Center

Standard Machine Features

36 m/min Speed Rapid Movements;

20 m/min. High Speed Cutting Feed

1.0 G acceleration

Direct Motor High Torque Spindle

24 Station Arm Type High Speed ATC

Big Plus BBT-40 Royal Brand Spindle

JAPANESE design strong and wide body structure

Long-term rigidity with rasping at 17 different points in Cast Body

Perfect rigidity and precision with Roller (Bobbin) Linear Guides

Super Precision C2 class Ball Screws in all axes

Extra Supported Durable Outer Case

Cooling water system and Boron oil gun

Pressurized bottom chip washing system (Wash Down)

Japanese Mitsubishi Brand Axis Drivers and Axis Motors (Direct Motor)

Rigit Tapping

Spiral type chip conveyor, Fully closed case

Warning lamp showing machine operating status

Interior Lighting lamp, Machine mounting foot set

Transformer, CE and Toolbox, Programming and Maintenance Book Set



Wiesser MV850P

Capacity Information

Machine table dimensions: 900 x 500 (mm)

T Channels: 14 (mm) x 125 (mm) x 3

Table loading capacity: 700 (kg)

X Axis Travel Quantity: 800 (mm)

Y Axis Travel Quantity: 500 (mm)

Z Axis Travel Quantity: 500 (mm)

Spindle to table distance: 130-580 (mm)

Spindle taper: Big Plus BBT-40

Max. Spindle motor power / Torque: 13.2 (kW)

Max. spindle speed: 12,000 (rpm) / Direct Motor

Number of magazine stations: 24 pieces Arm Type ATC

Max. tool diameter Pot Full / Pot Empty: 75/150 (mm)

Max. Tool length: 200 (mm)

Max. Tool Weight: 6 (kg)

Tool change time (T/T): 2.2 (sec)

Tool change time (C/C): 4.5 (sec)

Slide type X*Y*Z: Linear Roller (Spool) Slide

Axis slide thickness X*Y*Z: 35*45*45 (mm)

Ball screw diameter X*Y*Z: 32*40*40 (mm) / C2 Class

Rapid feed X*Y*Z: 36*36*36 (m/min)

Cutting feed X*Y*Z: 20 (m/min)

Coolant Tank Capacity: 200 Liter

Machine weight: 5,200 (kg)
