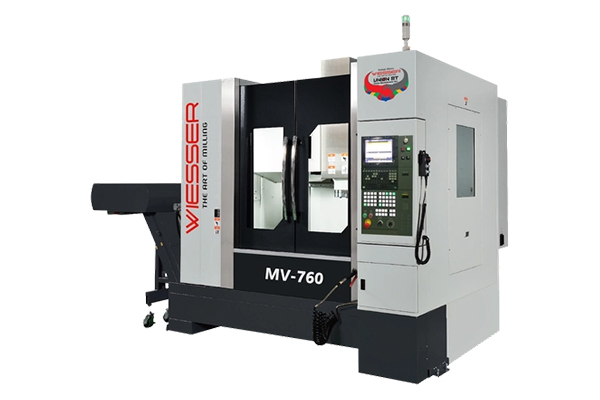

Wiesser MV760M

CNC Vertical Machining Center

Standard Machine Features

25 kW Spindle Motor

Screw Spindle with oil cooling system

Big Plus BBT-40 Direct Motor Spindle

48m/min. Rapid movement speeds on X and Y axes

30m/min. High Speed Cutting Progress

Japanese Design Strong, Wide and Rigid Body Structure

Long-term Rigidity with Scissors at 17 Different Points on Cast Body

Wide, Double Row Roller (Bobbin) Linear Guides with Grease Lubrication

Grease Lubrication on All Axis C2 Class 45mm Diameter Screw Shafts

3.2 mm Thick and Extra Supported, Durable Outer Case

High Speed and High Precision Features with Better Surface Quality

Rigit Tapping

Spiral Type Chip Conveyor

24 Station Arm Type ATC

Spindle Cooling System

Electrical Cabinet Cooling System

Fully Closed Case

Portable Handwheel

Compressed Air Tool Cooling System

Boron Oil Tool Cooling System

Boron Oil Gun

Air Gun

Colored Warning Lamp Showing Machine Operation Status

Led Interior Lighting lamp

Machine mounting foot set

Tool Bag and Kits

CE Equipment

Transformer

User and Maintenance Manuals

Wiesser MV760M

Capacity Information

Machine Table dimensions: 1,000 x 600 (mm)

T Channel dimensions: 18 x 5 x 100 (mm)

Table loading capacity: 700 (kg)

X Axis movement amount: 760 (mm)

Y Axis movement amount: 610 (mm)

Z Axis movement amount: 610 (mm)

Distance between spindle face and table: 100 ~ 710 (mm)

Distance from spindle center to column: 628 (mm)

Spindle motor power: 25 (kW)

Spindle taper: BBT-40 (Big Plus)

Maximum spindle speed: 12,000 (rpm)

Spindle - Motor transmission type: Direct Motor (Direct Drive)

Automatic magazine type: Arm Type

Number of magazine stations: 30 (pcs)

Maximum tool diameter: Side pots full: 75 (mm) / Side pots empty: 150 (mm)

Maximum tool length: 300 (mm)

Maximum tool weight: 7 (kg)

Tool change time (T-T): 1.8 (sec) / Tool to Tool

Tool change time (C-C): 4 (sec) / Chip to Chip

X Axis guideway type and width: Linear Roller Guide (35mm)

Y Axis guideway type and width: Linear Roller Guide (45mm)

Z Axis guideway type and width: Linear Roller Guide (45mm)

Screw shaft diameter X*Y*Z / Quality: 45*45*45 (mm) / Class C2

Axis motor power X*Y*Z : 3*3*4.5 (kW)

Rapid feed X*Y*Z : 48*48*36 (m/min)

Cutting feed X*Y*Z : 20 (m/min)

Positioning accuracy : ±0.005 (mm) / 300 (mm)

Repeat accuracy : ±0.002 (mm)

Machine dimensions W*D*H : 2,150 * 2,763 * 2,843 (mm)

Machine weight : 6,300 (kg)
