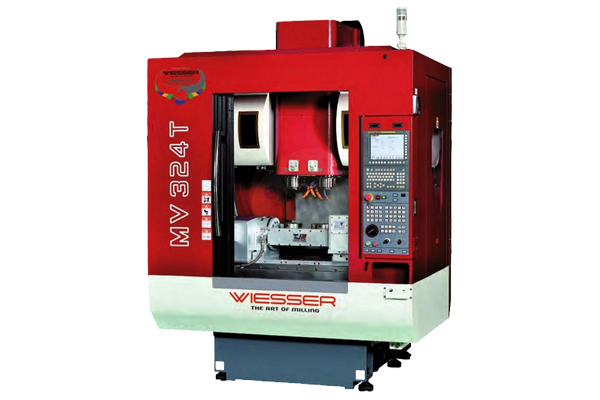

Wiesser MV324T Double Spindle CNC Machining Center

Wiesser MV324T

Standard Machine Features

Super High Speed CNC Machining Center

48 m/min. Speed Idle Movements

20 m/min. Cutting Feed

1G acceleration

Direct Motor Spindles

2 Pieces 20 Station Arm Type ATC

Big Plus BBT-30 Royal Brand Spindle

Strong and wide body structure

Rigidity that does not deteriorate for a long time with 17 separate points of scraping on the Cast Body

Super Precision C1 class Screw Shafts in all axes

Extra supported Durable Outer Case

Cooling water system and Boron oil gun

Pressurized bottom chip washing system (Wash Down)

Rigit Tapping

Spiral type chip conveyor, Fully closed case

Warning lamp showing machine operating status

Interior Lighting lamp, Machine mounting foot set

Transformer, Full CE and Tool Bag, Programming and Maintenance Book Set

Capacity Information

Machine table dimensions: 850 x 410 (mm)

T Channels: 14 (mm) x 125 (mm) x 3

Table loading capacity: 250 (kg)

X Axis Travel Quantity: 270 (mm)

Y Axis Travel Quantity: 400 (mm)

Z Axis Travel Quantity: 500 (mm)

Spindle to table distance: 200-700 (mm)

Spindle taper: Big Plus BBT-30

Max. Spindle motor power/Torque: 11 (kW)/70 (Nm)

Max. Spindle speed (Direct Motor): 12,000 (rpm)

Number of magazine stations: 2 x 20 pieces (Arm Type ATC)

Max. tool diameter Pot Full/Pot Empty: 75/150 (mm)

Max. Tool length: 200 (mm)

Max. Tool Weight: 3 (kg)

Tool change time (T/T): 1.2 (sec)

Tool change time (C/C): 2.7 (sec)

Rapid feed X*Y*Z: 48*48*36 (m/min)

Cutting feed X*Y*Z: 20 (m/min)

Machine External Dimensions W*D*H: 1,800 * 2,529 * 2,484 (mm)

Machine weight: 3,400 (kg)
