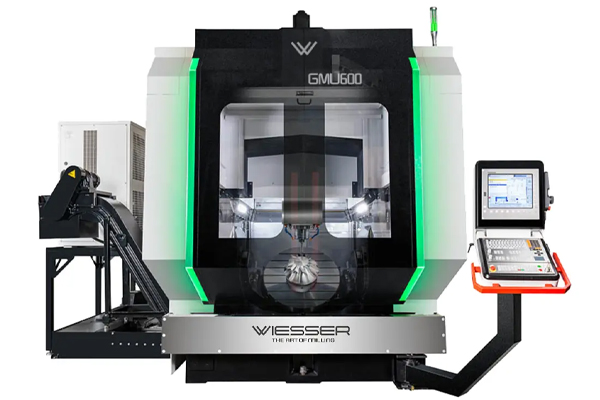

Wiesser GMU600

5 Axis CNC Machining Center

Standard Machine Features

Meehanite cast body technology with excellent damping feature

Better surface quality with High Speed and High precision features

Rigidity that does not deteriorate for a long time with its strong and wide body structure

Rigit Tapping

Pallet type chip conveyor

24-Station Tool magazine

Double Row Wide Roller (Bobbin) Linear Guides

Spindle Cooling System

Electrical cabinet ventilation system

Fully enclosed case

Portable handwheel

Tool cooling system with compressed air

Tool cooling system with boron oil

Oil gun

Air gun

Central lubrication unit

Colored warning lamp indicating machine operating status

Interior Lighting lamp

Machine mounting feet set

Tool Bag and Kits

CE Equipment

Transformer

Use and Maintenance Guides

Wiesser GMU600

Capacity Information

Machine Table dimensions : Ø650 (mm)

Table loading capacity : 650 (kg)

X/Y/Z Axis movement amount : 750 / 800 / 600 (mm)

Distance between spindle face and Table : 120 ~ 720 (mm)

Distance between two columns : 750 (mm)

A axis rotation range: (-30°) ~ (+120°)

C axis rotation range: 360°

Max. processing height: 600 (mm)

A/C axes rotation speed: 30/50 (rpm)

A axis Max. torque: 2.000 / 4.000 (Nm)

C axis Max. torque: 1,500 / 2,500 (Nm)

Spindle motor power : 35 (kW)

Spindle taper : HSK-A63

Maximum spindle speed : 15,000 (rpm)

Maximum spindle torque: 66.8 (Nm)

Spindle - Motor transmission type : Direct Motor

Number of magazine stations : 24 (pcs)

Maximum tool diameter : 80 / 120 (mm)

Maximum tool length : 250 (mm)

Maximum tool weight : 8 (kg)

Tool change time: 2 (sec)

Axis Motor powers X*Y*Z : 4.5 * 4.5 * 4 .5 (kW)

Rapid feed X*Y*Z : 30*40*30 (m/min)

Cutting feed X*Y*Z : 12 (m/min)

Machine External Case Dimensions W*D*H: 2.900 * 3.400 * 3.200 (mm)

Approximate Machine weight : 15.000 (kg)
