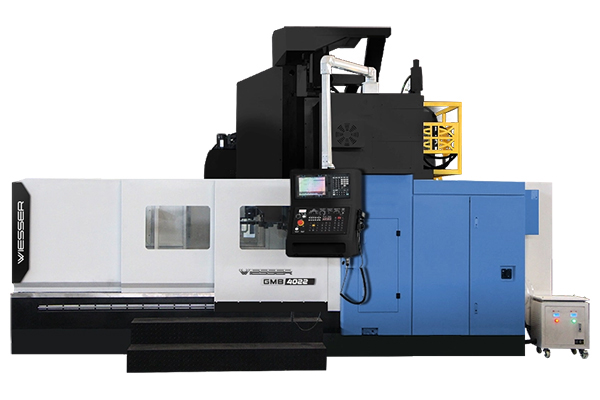

Wiesser GMB-4022

Capacity Information

Table dimensions : 4.000 x 2.000 (mm)

T Channel dimensions: 28 x 9 x 200 (mm)

Table loading capacity : 12.000 (kg)

X Axis Travel : 4.000 (mm)

Y Axis Travel : 2.200 (mm)

Z Axis Travel : 1.000 (mm)

Distance between spindle face and table : 280 ~ 1.280 (mm)

Distance between two columns : 2.300 (mm)

Spindle motor power : 22 / 26 (kW)

Spindle taper : BT-50

Max. spindle speed : 6.000 (rpm)

Spindle - Motor transmission type : Belt Type / Option: Italian BF Gearbox

Automatic magazine type : Arm Type

Number of magazine stations : 24 (pcs)

Max. tool diameter Standard / Side pots empty: 110 / 220 (mm)

Max. tool length : 300 (mm)

Ball screw diameter X*Y*Z : 80*63*50 (mm)

Ball screw pitch X*Y*Z : 20*12*10 (mm)

X Axis guideway type : Linear Roller Guide (55mm)

Y Axis guideway type : Linear Roller Guide (55mm)

Z Axis guideway type : Box way

Rapid feed X*Y*Z : 12*12*8 (m/min)

Cutting feed X*Y*Z : 7 (m/min)

Machine dimensions (WxDxH): 10.300 * 5.700 * 4.900 (mm)

Approximate Machine Weight: 40.000 (kg) (Varies according to options)
